DLY9-560A,DLY9-630A,DLY9-1000,DLY9-1000AT,DLY9-1500,DLY9-1800T,電磁離合器
|
規格 |
額定傳遞力矩N.M |
額定電壓 D.C.V |
線圈消耗功率(20℃)W |
允許最高結合轉速 r/min |
允許最高轉速 r/min |
|
250A |
2500 |
110 |
86 |
相對靜止 |
— |
|
500A |
5000 |
110 |
117 |
相對靜止 |
1300 |
|
800A |
8000 |
110 |
133 |
相對靜止 |
1000 |
|
1000A |
10000 |
110 |
143 |
相對靜止 |
1000 |
|
1500A |
15000 |
110 |
220 |
相對靜止 |
1000 |
|
1800A |
18000 |
24 |
205 |
相對靜止 |
1600 |
|
3000A |
30000 |
110 |
327 |
相對靜止 |
1450 |
|
4000A |
40000 |
110 |
365 |
相對靜止 |
1300 |
|
6300A |
63000 |
110 |
418 |
相對靜止 |
1100 |

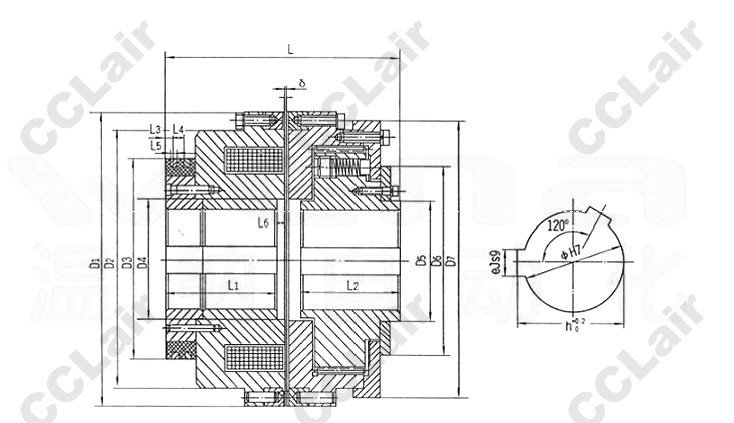

外形與安裝尺寸
Overall and Installation Dimensions
|
規格 Size |
徑向尺寸Radial Dimensions |
軸向尺寸Axial Dimensions |
電刷型號 Brush Model |
||||||||||||||||
|
D1 |
D2 |
D3 |
D4 |
D5 |
D6 |
D7 |
φ |
h |
e |
L |
L1 |
L2 |
L3 |
L4 |
L5 |
L6 |
δ |
||
|
250A |
260 |
220 |
180 |
122 |
126 |
138 |
223 |
100h7 |
106.4 |
28 |
205 |
85 |
85 |
8 |
14 |
8 |
23 |
1 |
DS-010 |
|
500A |
320 |
270 |
215 |
130 |
130 |
200 |
285 |
110h7 |
116.4 |
28 |
236 |
105 |
105 |
10 |
14.5 |
8 |
19 |
1 |
|
|
800A |
380 |
315 |
235 |
150 |
153 |
225 |
334 |
118g7 |
124.4 |
28 |
300 |
105 |
130 |
12 |
20 |
10 |
30 |
1.3 |
|
|
1000A |
420 |
350 |
255 |
140 |
160 |
230 |
370 |
110h7 |
116.4 |
28 |
310 |
135 |
135 |
12 |
20 |
10 |
23 |
1.5 |
|
|
1500A |
460 |
380 |
265 |
148 |
180 |
250 |
400 |
118g7 |
124.4 |
28 |
350 |
140 |
160 |
12 |
20 |
10 |
40 |
1.8 |
|
|
1800A |
480 |
410 |
265 |
180 |
180 |
255 |
370 |
150 |
160.2 |
36 |
342 |
150 |
137 |
12 |
20 |
10 |
30 |
1.5 |
|
|
3000A |
550 |
460 |
340 |
245 |
270 |
340 |
480 |
210h7 |
224.2 |
50 |
400 |
155 |
180 |
15 |
20 |
10 |
45 |
1.5 |
|
|
4000A |
560 |
480 |
395 |
255 |
270 |
340 |
180 |
190h7 |
200.4 |
45 |
430 |
175 |
195 |
12 |
20 |
10 |
40 |
1.5 |
|
|
3600A |
660 |
560 |
404 |
322 |
320 |
400 |
580 |
260 |
275.2 |
55 |
490 |
200 |
230 |
18 |
26 |
12 |
38 |
1.5 |
|
|
|
|
|
|
|
|
|
